FT-49-GD45220R型高速 InGaAs 光电探测器
Description
FT-49-GD45220R型高速 InGaAs 光电探测器
特点 Features
● 宽带宽
Wide Bandwidth
● 集成内偏置电路
Internal Bias-T
● DC 耦合
DC Coupled
● 气密性封装，，，SMA 毗连器输出
Hermetically sealed, SMA connector
应用 Applications
● 高速光通讯
High Speed Optical-fiber Communication
● 微波光子链路
Microwave Photonic Link
● 高速测试丈量
High speed Test and Measurement

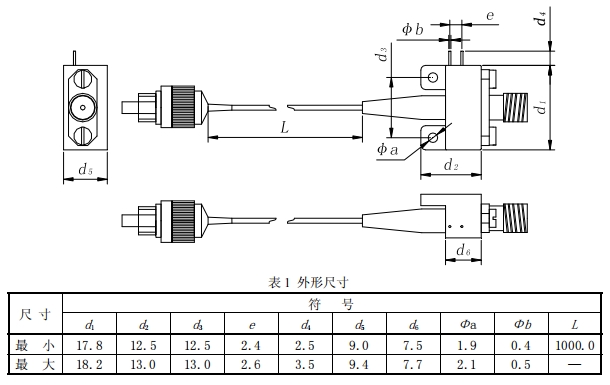

封装形状及引脚界说（单位：毫米）The packages and the pins (Unit: mm)

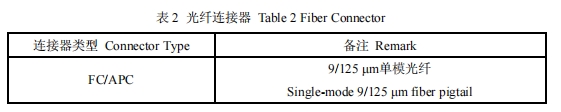

产品光纤信息 Fiber Information
质量可靠性包管 Qualification Information
产品切合 GJB 8120-2013《半导体光电？？？？橥ㄓ霉娣丁 。。。。
Photodetector module have passed reliability assurance requirements as specified by GJB 8120-2013.
注重事项 Precautions
— 光纤弯曲半径不小于 20mm 。。。。
The fiber bending radius no less than 20mm for avoiding fiber damaged.
— 使用前包管光纤毗连处清洁 。。。。
Be sure the fiber coupling facet is clean before connecting it to opto-circuit.
— 贮运、使用历程中必需接纳适当的静电防护步伐 。。。。
The suitable ESD protection is required in storage, transportation and using.
注：本产品有天下产化型号可选
本产品为FT-49系列，，，仅展示部分参数，，，若有需要，，，请联系壹号娱乐 。。。。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
